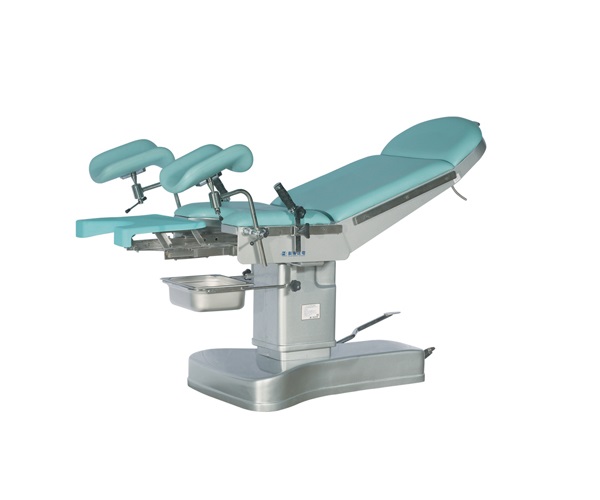

KL-FS-III Gynecology table
KL-FS-III gynecology table is clinically used for gynecologic examination, parturition of lying-in woman and other common operations.
Gynecology table consists of chassis, column, table-board, pneumatic spring and etc. Table-board is divided into back plate, seat plate and auxiliary leg plate.
Pneumatic spring is manually controlled to adjust front and backward tilting of table-board and upward folding of back plate. Hydraulic oil pump is adopted to elevate table-board via foot-operated control. Mechanic transmission is adopted to jack up or fall chassis to the ground via foot-operated control.
Soft mattress for gynecology table-board is made of high-density leathered and that for auxiliary leg plate is made of polyurethane. Cover casing of gynecology chassis and both inner and outer cover casing of oil pump column are made of ABS plastics.
Technical Specifications:
Table Length£º1330mm±50mm
Table Width£º550mm±30mm
Auxiliary table£º340mm×460mm(±20mm)
Forward inclining of the platform≥15¡ã
Backward inclining of the platform≥12¡ã
Backboard fold upward≥70¡ã
Table at the lowest level¡Ü650mm
Table elevating stroke≥210mm
Auxiliary table stroke≥540mm
